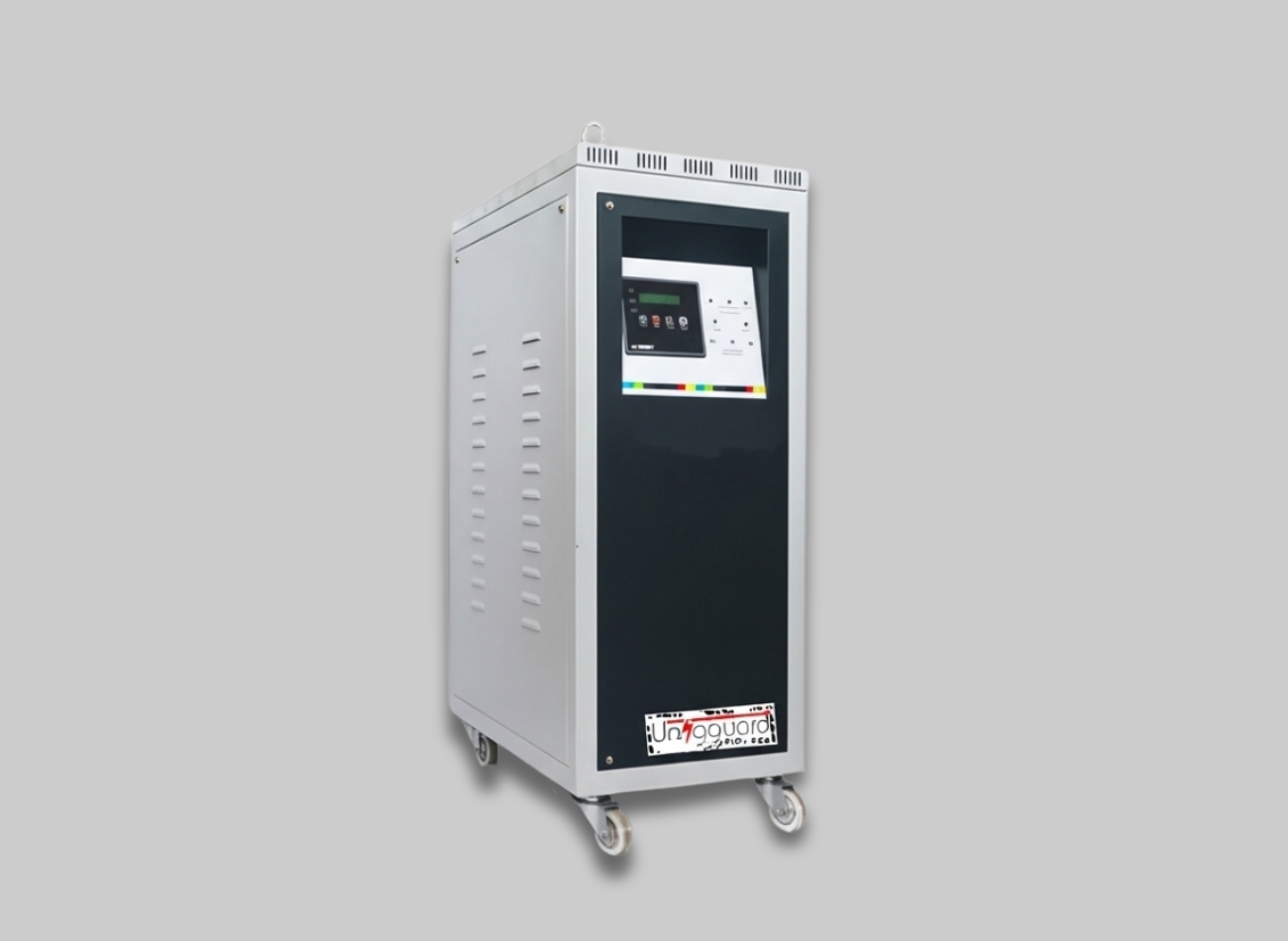

Uniguard Servo Controlled Stabilizer
Uniguard Servo Controlled Stabilizer is a Servo motor-controlled stabilization system that performs optimum voltage supply using a variable transformer.
Why Choose This Product?
- Individual Phase control (In the Three Phase model)
- Bypass provision
- Available in both Single and Three Phase configurations
- Quick response time 10 milli sec (half a cycle)
- High efficiency, low maintenance costs — lowest life cycle cost
- Micro controller based electronic circuit for precise correction

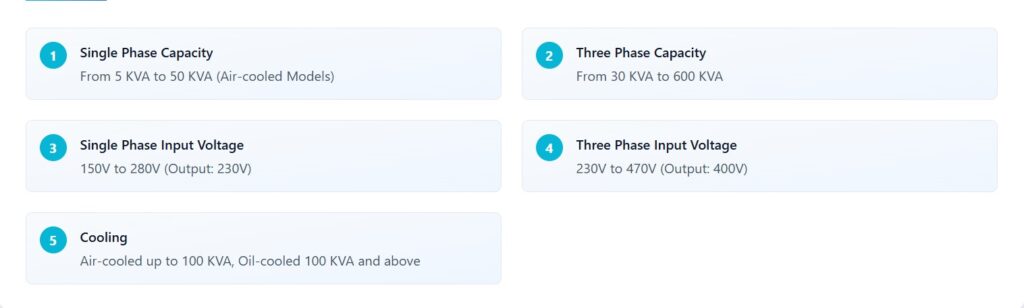

Technical Specifications
Product Variants
50 KVA Three Phase Air Cooled Servo Stabilizer
- Microcontroller (DSP) based control system
- LCD Displays – Input & Output Voltage, Frequency and % Loading
- User adjustable setting of O/P Voltage, High/Low cut-off limits
- Higher response time through its Microcontroller design
- Complete Phase-wise protection against High/Low voltage, Overload, Short circuit & Spikes
Uniguard Servo Controlled Stabilizer is a Servo motor-controlled stabilization system that performs optimum voltage supply using a variable transformer booster that captures voltage fluctuations from input and regulates current to the correct output. An AC synchronous motor adjusts voltage in the clockwise or anticlockwise direction and manages the output voltage with components like control card, dimmer, comparator, transistors, etc. The Normal Stabilizers have only Cut In/Cut Off provisions, whereas Centralized Servo Controlled Stabilizer will serve the purpose for all home/commercial appliances with one-stop protection.
